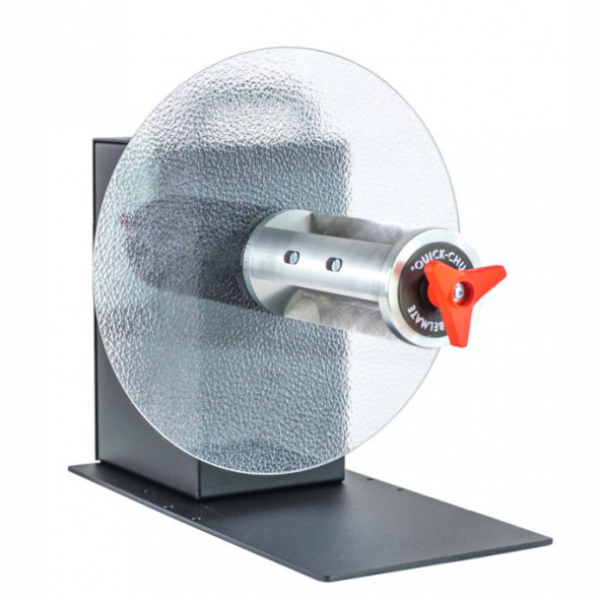

LABELMATE CAT-3-CHUCK LABEL REWINDER

The CAT-3-CHUCK handles labels up to 170, 220 or 270mm wide and will wind a roll of labels up to a 300 mm diameter. This model includes durable “Quick-Chuck” quick-locking Core Chuck, permitting the fastest loading and unloading of cores and label rolls.
Standard Quick-Chuck: Core diameter: 76mm / Label width: 170mm.

Torque and Direction are fully controllable from the Control Panel. Dual torque ranges provide plenty of power for use with a LABELMATE Slitter, too.

Rugged, heavy-gauge steel construction allows your CAT-3 Rewinder to be simply set in place. Special anti-slip feet keep the unit from moving.

Power supply :

Input: 100-240VAC, 50Hz ; Output: 15VDC-4.33A

P/N: LMR006

FEATURES

Settings for Torque/speed and direction via the Control Panel.

CAT-3 with custom build heavy-duty & silent motor. Max. Speed: 125 CM/SEC at the beginning of a 76 mm core roll.

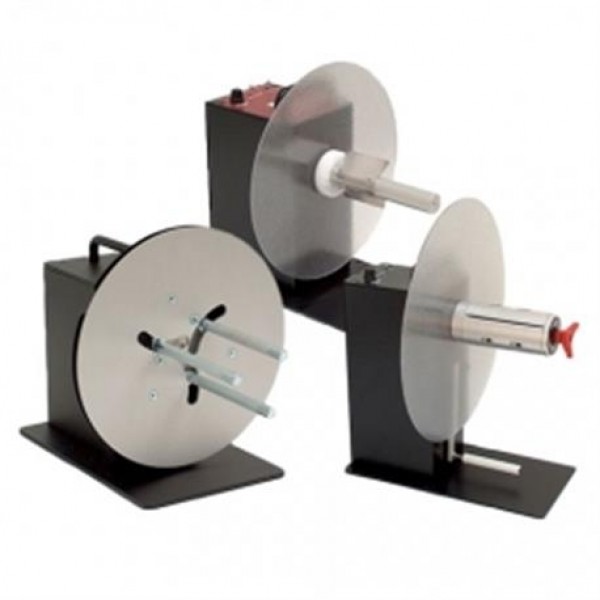

The CAT-3-Standard has a vane-style core Holder.

The CAT-3-ACH employs an adjustable core holder enabling the use of varying core sizes, for maximum flexibility.

The CAT-3-CHUCK includes a quick-locking “Quick-Chuck” core chuck permitting the fastest loading and unloading of cores and label rolls.

CHUCK/STANDARD/10-INCHES models come standard for using cores in 76mm. On request available in 38/40/44/50/70 mm.
