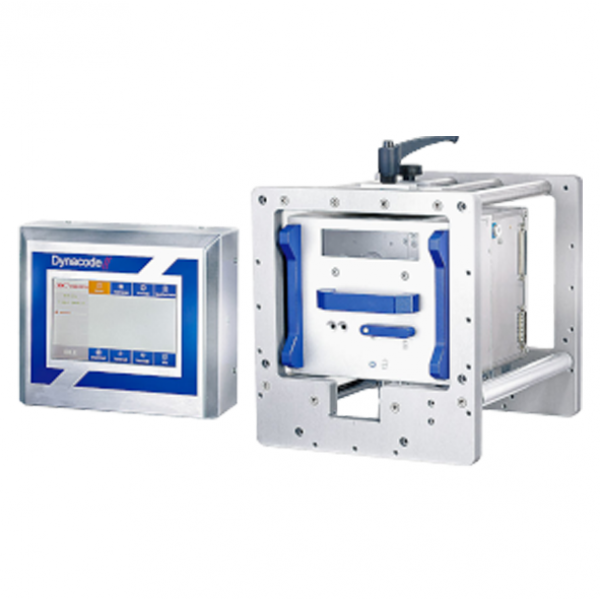

CARL VALENTIN DYNACODE II 107

The further advancement of a successful series.

Features

Intermittent and continuous mode freely selectable.
Left and right version available.
Up to 900 m transfer ribbon for long production running times.
Display of remaining transfer ribbon for quick ribbon changes.
Optimal transfer ribbon usage.
All common interfaces for fast data exchange.
Minimum of wear parts.
Intuitive graphical user interface with icon buttons.
WYSIWYG display with preview for verifying the layout.
7“ touch-screen colour display.

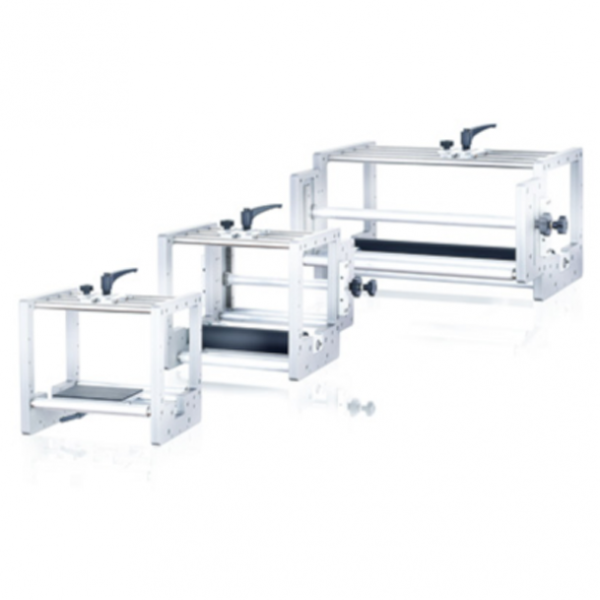

Bracket system

Bracket systems permit an uncomplicated integration in your packaging line.

Continuous mode – when printing continuously the printhead stands still while the packaging foil is guided through. Printing takes place during the operation of packaging machine. Print speed – from 50 mm/sec to 800 mm/sec.

Intermittent mode – When printing intermittently the printhead moves over the foil in order to move back to initial position. Printing takes place while the machine is at a short standstill, frequently while packaging is being filled. Print speed – from 50 mm/sec to 600 mm/sec.

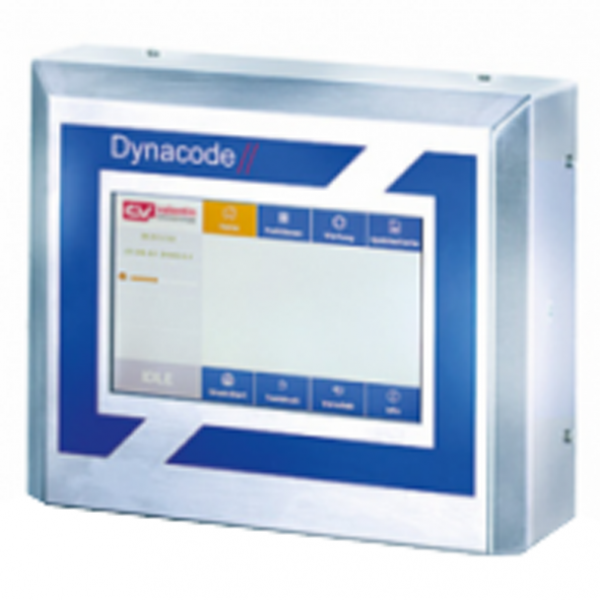

Control unit

The control unit of the Dynacode II features an intuitive user interface with icon buttons and a 7“ colour touch-screen display with preview for verifying the layout. This makes it very easy to keep control over the print configuration. WYSIWYG display with preview for verifying the layout.
