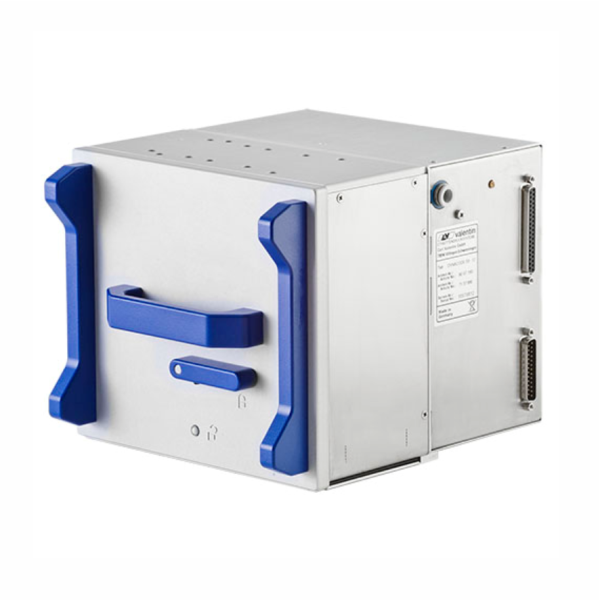

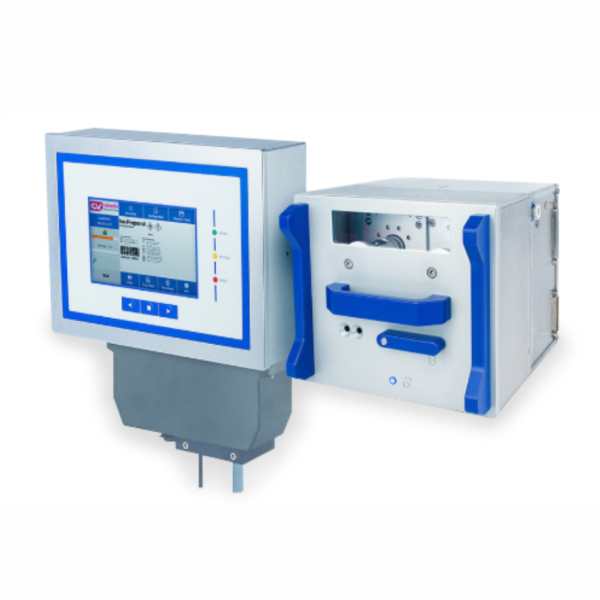

CARL VALENTIN DYNACODE II IP 128

The splash-proof version of the Dynacode II offers additional protection in harsh production environments. The optionally available version additionally dispenses with bulky and bothersome covers to protect the device, as neither print module nor control unit must be dismounted or covered during the cleaning process. This means that production downtimes are even further reduced.

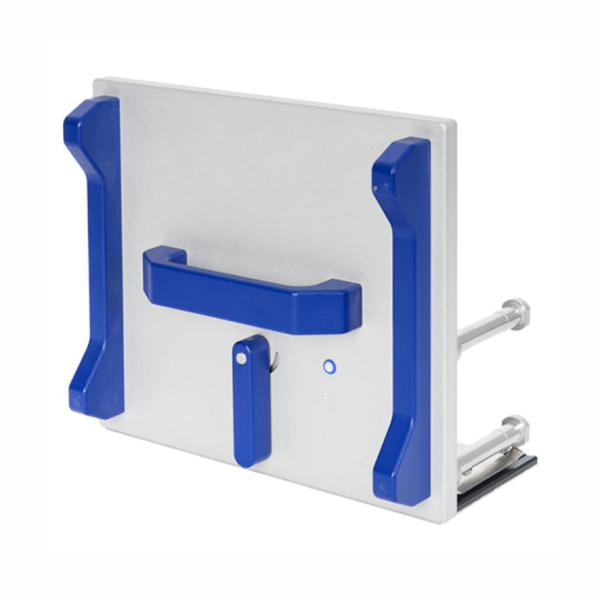

The cleaning cassette necessary for this can simply replace the ribbon cassette within seconds. The splash-proof Dynacode II IP version is ideally suited for marking hygienic products and for printing in production environments where wet cleaning is required, such as in dairies or coffee roasting plants.

Protection against water and dust

After all the necessary connections have been established to the control unit and all unused connectors have been covered using the appropriate accessory, the control unit is protected against water and dust at all times, in accordance with protection class IP65. Owing to conditions during the operation of direct printing units of this type, the printing mechanism cannot be fully protected against the ingress of water while printing is in progress. However, using the special cleaning cassette, it is possible to protect the printing mechanism during downtimes against the ingress of water and dust in accordance with protection class IP65.

The further advancement of a successful series.

Features

Intermittent and continuous mode freely selectable.
Left and right version available.

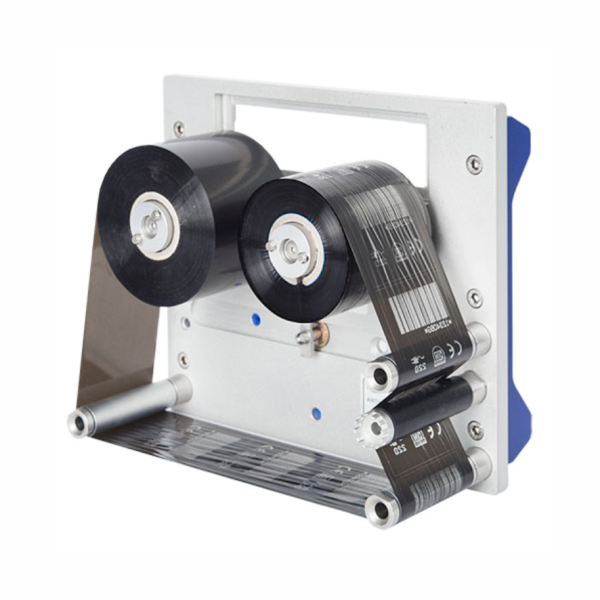

Up to 900 m transfer ribbon for long production running times.
Display of remaining transfer ribbon for quick ribbon changes.
Optimal transfer ribbon usage.

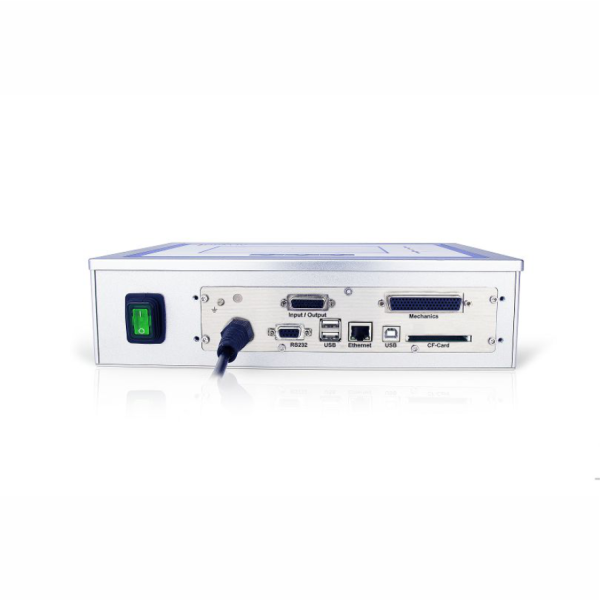

All common interfaces for fast data exchange.
Minimum of wear parts.
Intuitive graphical user interface with icon buttons.
WYSIWYG display with preview for verifying the layout.
7“ touch-screen colour display.

Bracket system

Bracket systems permit an uncomplicated integration in your packaging line.

Continuous mode – when printing continuously the printhead stands still while the packaging foil is guided through. Printing takes place during the operation of packaging machine. Print speed – from 50 mm/sec to 800 mm/sec.

Intermittent mode – When printing intermittently the printhead moves over the foil in order to move back to initial position. Printing takes place while the machine is at a short standstill, frequently while packaging is being filled. Print speed – from 50 mm/sec to 600 mm/sec.

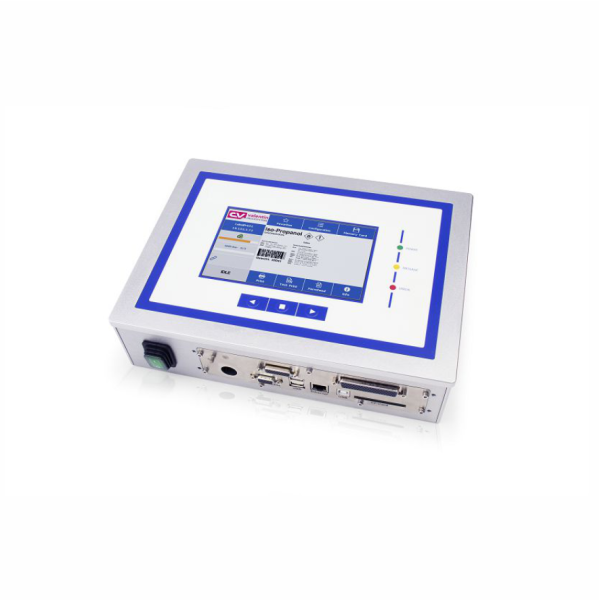

Control unit

The control unit of the Dynacode II features an intuitive user interface with icon buttons and a 7“ colour touch-screen display with preview for verifying the layout. This makes it very easy to keep control over the print configuration. WYSIWYG display with preview for verifying the layout.
