High-quality coding for individual packaging

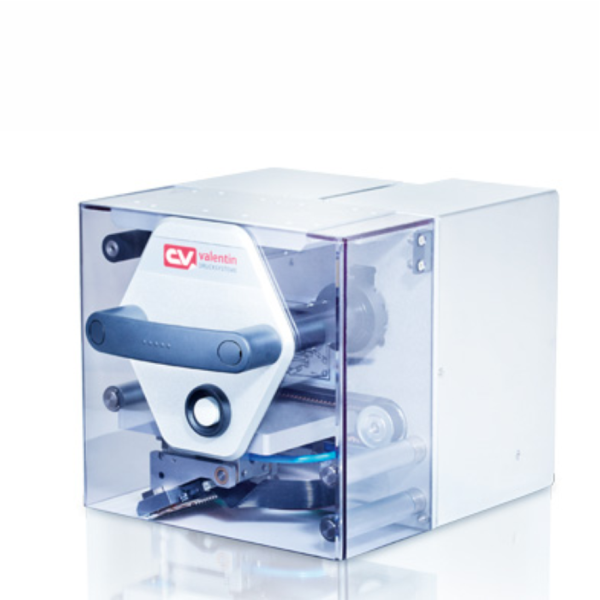

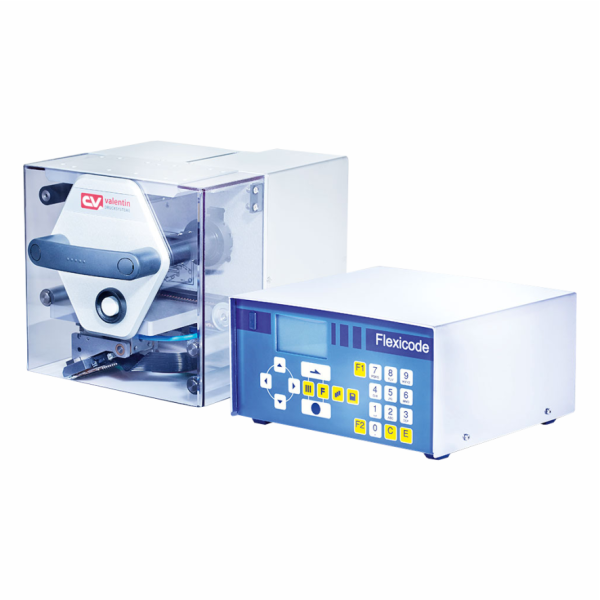

Flexicode is the ideal marking system when variable data is to be printed directly onto foil without first having to print a label. Flexicode is a budget-oriented entry-level system focused on important and basic functions.
Flexicode works with digital thermal transfer technology. This method stands for exceptionally good print quality and maximum reliability. Flexicode's easy maintenance, supported by a multitude of diagnostic functions, is an additional advantage.
Easy and user-friendly handling

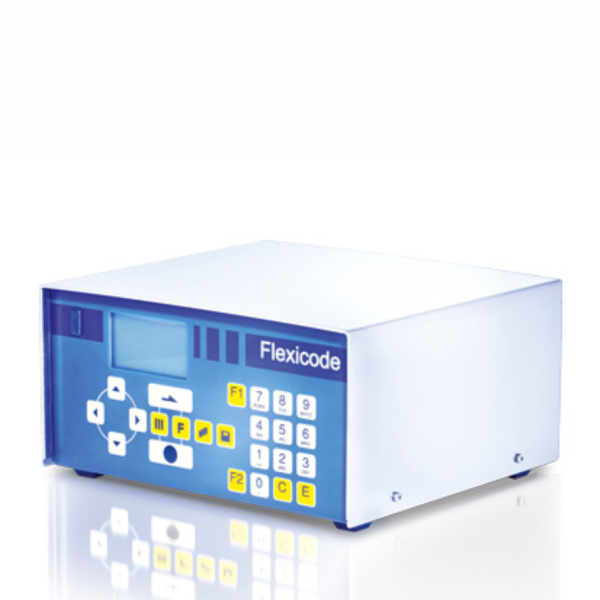

Flexicode is operated via a graphic display with a 10-key foil keyboard. With its optional Touch Panel the Flexicode also simplifies operation for inexperienced personnel. The menu structure, which is divided in function groups, provides for easy and fast handling when making product changes. The intuitive menu navigation serves to reduce errors right from data entry. Menu access can be password-protected, which provides for optimum security. Error messages, function names and parameters are displayed in the national language.
Intermittent mode and continuous mode selectable;
Compact outer dimensions;
Transfer ribbon prior warning;
Quick access to real-time data;
Synchronisation with packaging machines;
Optimal user comfort and low maintenance;
Low noise emission.
Producer | Carl Valentin |
---|---|
Printing method | Thermal Transfer |
Resolution | 300 dpi |
Print head type | Near Edge |
Max. printing speed | 50 - 400 mm/s, back speed - max 600 mm/s |
Max. printing width | 53,3 mm |
Max. printing length | Intermittent mode - max 40 mm. Continuous mode - max 3000 mm |
Interfaces | 2 x USB host, USB 2.0, Ethernet, RS-232, SPP |
Screen | graphic display 132 x 64 pixel |
Features | - |
Dimensions | Print mechanics without mounting frame: 190 x 180 x 208 mm. With mounting frame: depending on the passage width. Control unit 242 x 117 x 220 mm. Connecting cable set to print mechanics 2.5 m |
