Details
Robust and compact design
The printhead is made from hard anodized aluminium with a stainless steel product foot plate. It encloses the nozzle area avoiding air turbulence and giving optimum print quality at high speed printing.

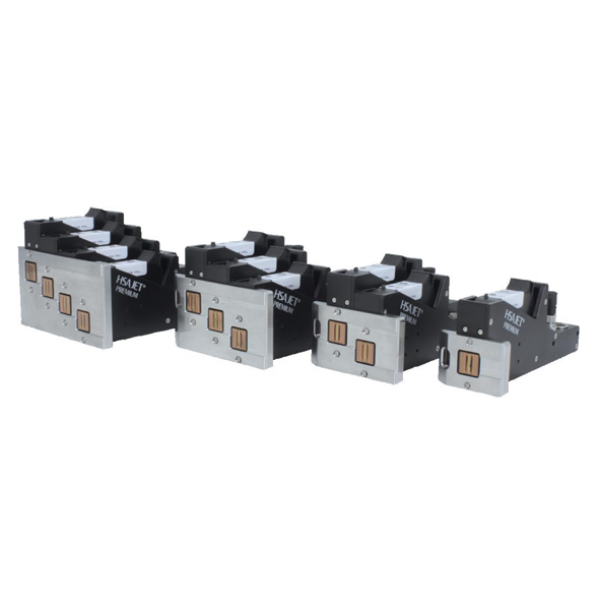

Stackable compact heads
Printheads can as standard be purchased with 1, 2, 3, 4, 6, 8 or 10 pens. A number of 0.5″ printheads can be joined up to 5″ print head arrays.
One cable per 4 joined pens
HSAJET® Premium printheads are designed with more combined features than single stalls being placed side by side. The printheads are linked together, so all communication is sent to one stall, which distributes data via a small internal ribbon cable.
Quick and easy change of cartridge
The easy-shift feature allows change of the print cartridge with one hand and without use of a latch. The design facilitates correct insertion of the cartridge.
One and same foot plate for left and right travel of products
The foot plate can easily be turned 180° if opposite print direction is required.
Key Features
Robust and compact design.
Quick and easy change of cartridge.
Purge button on head.
Low ink indication and reset button on head.
Industrial connectors.
Built-in printhead protection switch.
One and same foot plate for left and right travel of products.
Easy to use.
No special training required to operate and maintain.
Additional Information
| Producer | HSA Systems |
|---|---|
| Printing method | HP TIJ 2.5 |
| Max. printing width | 12.7-127 mm / ½"-5" / 1 to 10 pens. |
| Max. printing length | - |
| Interfaces | Controller: M16 6-pole female socket, Sensor: M8 4-pole female socket. |
| Dimensions | - |
-
