  • Print mechanics SPE 107/12, left version Print mechanics SPE 107/12, left version

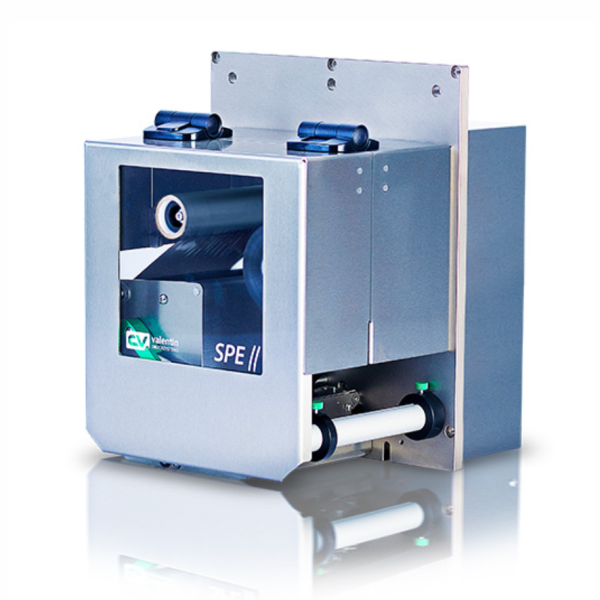

  • Print mechanics SPE 107/12, right version Print mechanics SPE 107/12, right version

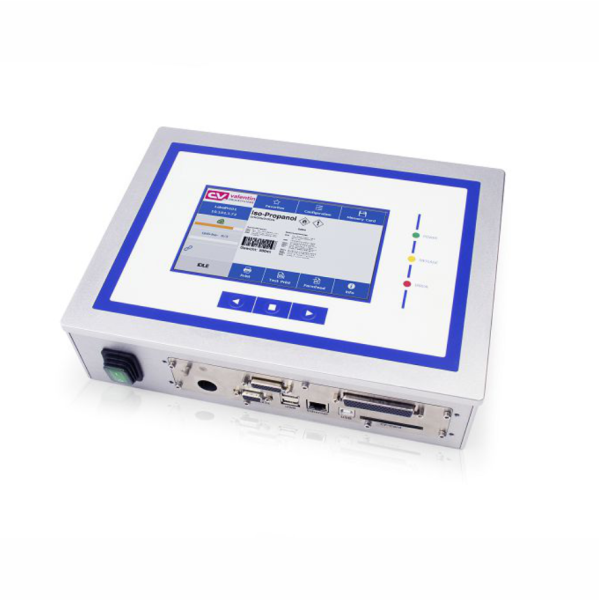

  • Control unit with touchscreen, function keys and status LEDs Control unit with touchscreen, function keys and status LEDs
  • Control unit, power switch, interfaces, connections, CF interface Control unit, power switch, interfaces, connections, CF interface
  • Optional control unit as desktop enclosure with touch screen, USB input, on/off switch. Optional control unit as desktop enclosure with touch screen, USB input, on/off switch.

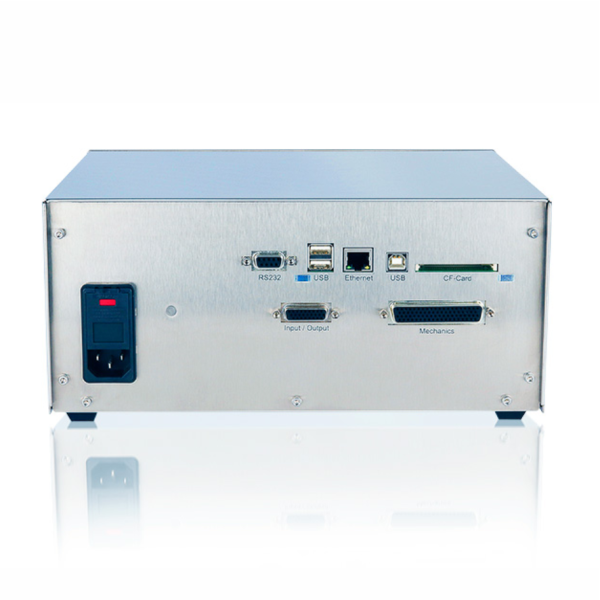

  • Rear panel of the optional control unit (desktop enclosure) with power supply, interfaces, CF interface Rear panel of the optional control unit (desktop enclosure) with power supply, interfaces, CF interface

CARL VALENTIN SPE II

Quick Overview


SPE II 106/12, 106/24, 107/12, 108/12, 160/12, 162/12


Print module


Print width – 105.7, 105.6, 106.6, 108.4, 160, 162.6 mm


Print speed – up to 350, 100, 300 mm/sec




Request a Quote

Details

CARL VALENTIN SPE II

Sturdy and solid construction is one of the advantages of this print module. Due to its modular construction it is possible to use this print module in almost every labelling application. The print module can be used as additional module mounted on a label applicator or as stand-alone system in combination with a pneumatically controlled label applicator. This is realized by means of the internal dispenser unit as well as the optional label unwinder and ribbon rewinder.

External inputs and outputs permit a full automatic operation in machine construction.

High resolution up to 600 dpi, print speed up to 350 mm/s as well as easy handling e.g. labels and transfer ribbon can be loaded from outside, make this print module to a popular universal device in label printing and dispensing sector.

Left and right versions permit the installation in different labelling systems.

Additional Information

Producer Carl Valentin
Screen LCD display 800 x 480 pixel, screen size 7"
Resolution 300 dpi
Max. printing speed max. 350 mm/sec
Max. printing length min. 15 mm - max. 3000 mm
Max. printing width 25 mm - 105,7 mm
Interfaces RS-232C, USB 2.0, Ethernet, 2 x USB Master.
Features -
Power 110 … 240 V AC / 50-60 Hz
Dimensions Print mechanics 245 x 300 x 317 mm Control unit Panel enclosure: 314 x 230 x 80 mm Desktop enclosure: 287 x 127 x 250 mm
