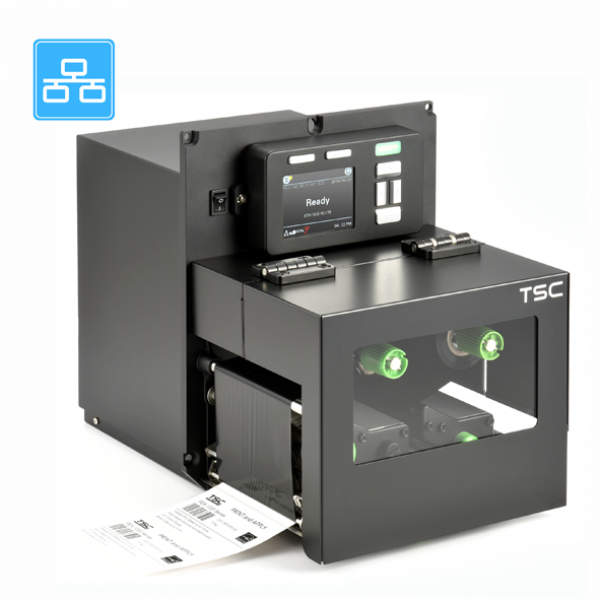

PEX-1000 SERIES
TSC’s innovative PEX-1000 Series print engine incorporates a robust die cast construction designed for years of reliability, ease of use, and cost-conscious serviceability. The PEX-1000 Series combines a precision print mechanism with high performance electronics to produce labels at up to 18 inches per second.
Designed for ease of integration, the PEX-1000 Series features a bolt-compatible construction with a commonly used GPIO interface and an easy to use color display. The PEX-1000 Series offers simple integration into both new and existing label application installations. It is ideal for manufacturing and logistic applications where high speed and high demand label printing is required.

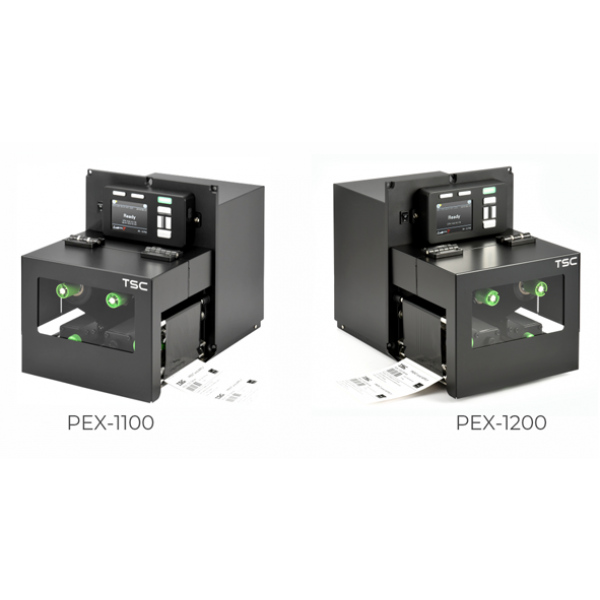

The PEX-1000 series are available in a left-hand configuration and a right-hand configuration.
Left-hand model – PEX-1100.
Right-hand model – PEX-1200.
Rugged Design
• Durable and reliable, delivers outstanding print quality for every label;
• State of the art and robust peel-off capability works with a wide range of label sizes, including excellent small label performance.
High Performance
• Highest print speed in its class, up to 18 ips;
• High precision label registration supports labels as small as 5 mm in height;
• Multiple connectivity – Industry Standard GPIO, USB, Parallel, Serial, Ethernet, options including Bluetooth 4.0 & 802.11 a/b/g/n wireless module.
Exceptional Usability
• Exclusive color display is intuitive and easy to operate;
• USB host in front supports one-step updates for label formats or firmware via USB drive.
Ease of Maintenance
• Drawer design in rear for quick access to maintenance parts;
• Media drive system is modular design for quick and easy access and replacement.
Extensive Compatibility
• Easily mount the print engine into the current applicator and support print language emulation.

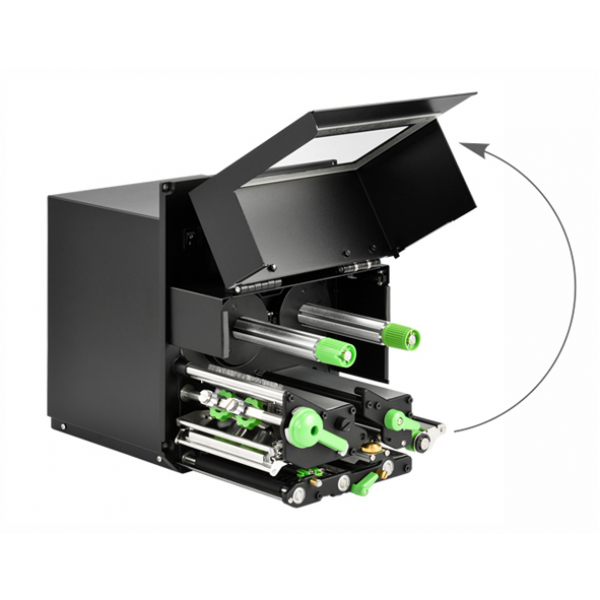

Open the print engine cover
Additional information
| Model: LH
Model: RH
|
PEX-1120
PEX 1220
|
PEX-1130
PEX-1230
|
PEX-1160
PEX-1260
|
| Resolution |
8 dots/mm (203 dpi) |
12 dots/mm (300 dpi) |
24 dots/mm (600 dpi) |
| Printing method |
Thermal Transfer & Direct Thermal |
| Max. print speed |
457 mm (18″)/second |
356 mm (14”)/second |
152 mm (6”)/second |
| Max. print width |
104 mm (4.09”) |
| Max. print length |
25,400 mm (1000″) |
11,430 mm (450″) |
2,540 mm (100″) |
| Media width |
20 ~ 114 mm (0.8” ~ 4.5” |
| Label length |
5 ~ 25,400 mm (0.2″ ~ 1,000″) |
5 ~ 11,430 mm (0.2″ ~ 450″) |
5 ~ 2,540 mm (0.2″ ~ 100″) |
| Enclosure |
Die-cast based print mechanism |
| Ribbon |
600 m long, max. OD 90 mm, 1“ core (ink coated outside or inside) |
| Ribbon width |
25.4 mm ~ 114.3 mm (1” ~ 4.5”) |
| Processor |
32-bit RISC CPU |
| Memory |
• 512 MB Flash memory
• 512 MB SDRAM
• microSD Flash memory card slot for Flash memory expansion, up to 32 GB |
| Interface |
• RS-232
• USB 2.0
• Internal Ethernet, 10/100 Mbps
• USB host * 1 (front side), connecting USB storage device
• GPIO + Centronics
• Internal Bluetooth 4.0 (dealer option)
• 802.11 a/b/g/n wireless (dealer option) |
| LED/LCD |
• 3.5” color TFT display, 320 x 240 pixel
• 1 status indicator |
| Sensors |
• Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (position adjustable)
• Ribbon encoder sensor
• Ribbon end sensor
• Head open sensor
• Media cover open sensor |
| Physical dimension |
245 mm (W) x 300 mm (H) x 390 mm (D)
9.65” (W) x 11.81” (H) x 15.35” (D) |
| Weight |
13 kg (28.66 lbs) |
