TSC DA220

Quick Overview



Price – 263 Eur





Printing resolution: 203 dpi


Max. printing speed: 152,4 mm/sec


Max. printing width: 108 mm


Max. printing length: 2794 mm (DA210) / 25400 mm (DA220)

Request a Quote

Details

DA210/DA220

Very Affordable, Reliable Direct Thermal Label and Tag printer



The DA210/DA220 Series of direct thermal desktop printers are ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and other labeling and tag applications at the best price anywhere.

The DA210/DA220 Series is a perfect combination of affordability with a durable and reliable design. With a cost that can’t be beat, the DA210/DA220 Series offers 203 dots per inch print resolution with printing speeds up to a fast 6 inches per second. The large 60 watt power supply produces high quality printed labels, even at its fastest print speeds.

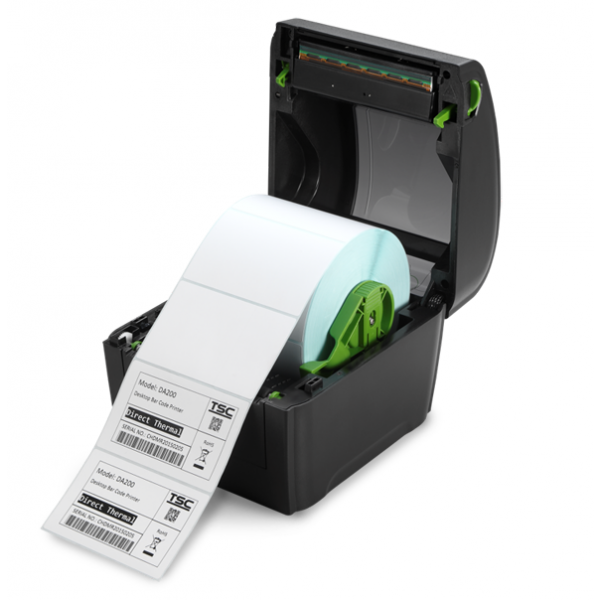

For easy loading, the DA210/DA220 employs a user-friendly double-wall clamshell design with a large five-inch (outside diameter) center-biased media bay. The spring-loaded label roll holder makes loading simple. Top-of-form sensing – by gap, black mark, or notch – is standard. The printer also comes with a head-open sensor.

USB 2.0 connectivity is standard, and options include Ethernet, Serial RS-232, and USB-A Host connections. Users may also add a Bluetooth or 802-11b/g/n Wi-Fi option.

The DA220 has plenty of memory with 128 MB Flash & 64 MB SDRAM that can be used for easy storage of fonts, international character sets and graphics, and it supports, “right out of the box,” a fully compatible set of standard industry emulations, including Line Mode, Eltron® and Zebra® languages, making it easy to replace old installed hardware.


Additional Information

Producer TSC
Part Number 99-158A001-0002, 99-158A005-0202, 99-158A015-2102, 99-158A013-1102, 99-158A025-2702, 99-158A028-1502.
Resolution 203 dpi
Print width 4 inch
Printing method Direct Thermal
Print head type Flat Head
Max. printing speed 152,4 mm/sec
Max. printing width 108 mm
Max. printing length 25400 mm
Label width 19 - 114 mm
Label length 10 - 25400 mm
Max. labels roll diameter 127 mm
Interfaces USB 2.0 High speed Modus, USB Host, RS-232, Ethernet, RTC
Memory 16 MB SDRAM, 8 MB flash memory (DA210) / 64 MB SDRAM, 128 MB flash memory (DA220)
Optional Internal Bluetooth, External roll mount (DA210) / RS-232, USB Host, Internal Bluetooth, External 802.11 b/g/n Wireless, External roll mount, Peel-off module, Guillotine cutter (full cut or partial cut), KP-200 Plus keyboard display unit (DA220)
Dimensions 172 x 165 x 195 mm
