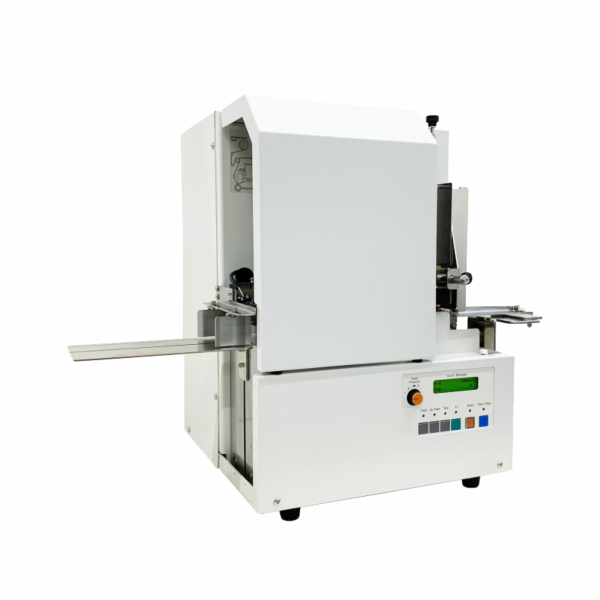

This printer can be equipped with a 305 dpi or 600 dpi print head, and the maximum print speed is up to 150 mm/sec.
- It can print barcode and QR code on different shape tag.
- Ink Ribbon Saving.
- The ink ribbon feeding is temporarily stopped when the over 30 mm blank is included in print data.
- Variety of Tag Size Printable.
Printhead options
The printer can be equipped with:
23.6 dots/mm (600 dpi) printheads – for higher resolution when precise and detailed printing is required.
12 dots/mm (305 dpi) printheads – a more economical choice, suitable for standard printing.
Printhead width
600 dpi printheads – available in three types with selectable widths: 64 mm, 40 mm, or 32 mm. You can choose the one that best suits your needs, saving costs.
305 dpi printheads – 64 mm width.


Thermal ribbon saver (for 30 mm of longer printing)
Maximum Print Speed: 150 mm/second
Stacker height : 150 mm
Max. printing lenght : 300 mm
Auto stacker inclusive : 150 mm in height
Easy label design using programs: Nicelabel, Bartender, Corel Draw, Microsoft Word.
Printing sample:




| Producer | CMM Chuwa Co. |
|---|---|
| Part Number | No |
| Resolution | 305 dpi / 600 dpi |
| Print width | 64 mm |
| Printing method | Thermal Transfer |
| Print head type | Near Edge |
| Max. printing speed | 150 mm/sec |
| Max. printing width | 64 / 40 / 32 mm |
| Max. printing length | 50 - 300 mm |
| Label width | 19 - 105 mm |
| Label length | 50 - 300 mm |
| Max. labels roll diameter | - |
| Interfaces | USB 2.0 |
| Memory | No |
| Optional | Internal Ethernet 10/100 Mbps |
| Dimensions | 335 x 345 x 465 mm |
