RYNAN IOJ100

Quick Overview


Stand-alone operation with Wireless keyboard direct connection


Print speed: max. 70 m/min @ 300 x 300 dpi


Resolution: max. 600 x 600 dpi



Request a Quote

Details

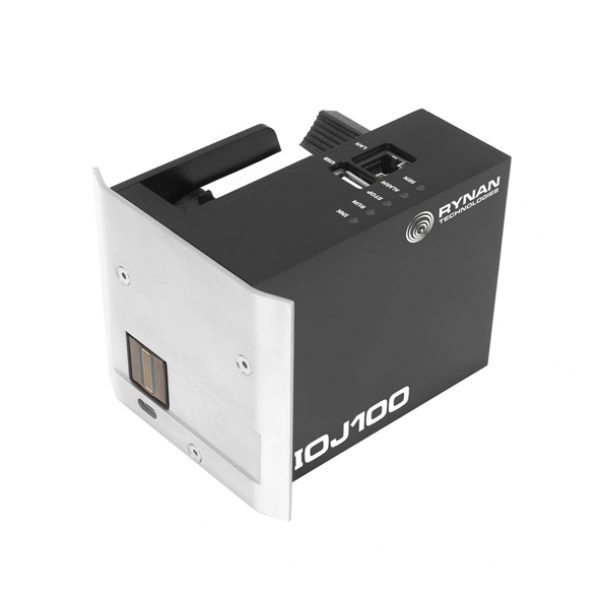

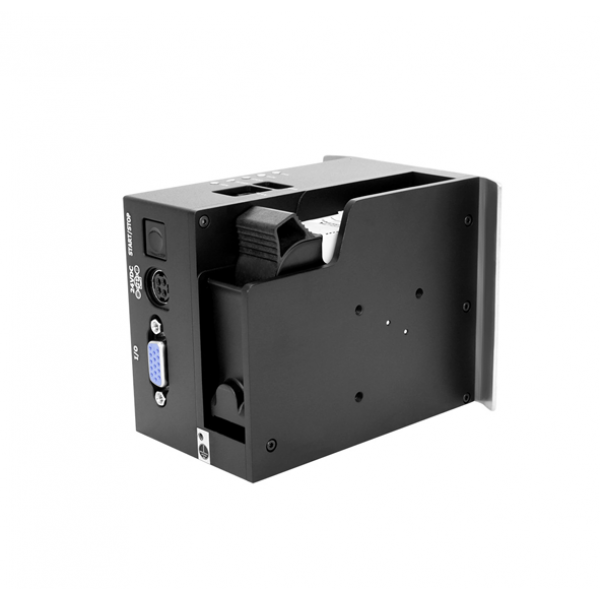

RYNAN IOJ100 – SINGLE HEAD NETWORK PRINTER



The RYNAN IOJ100 is a single head smart network thermal inkjet printer. This printing system allows for smart integration and remote connection via LAN, Wi-Fi, Hotspot use, web browser control and the RYNAN Mobile App.



Technical Parameters

• Resolution: Up to 600x600dpi.
• Printing Speed: 70m/min @ 300x300dpi.
• Printability: Print Online Data with Camera system, Barcode Scanner, Database.
• Security: Password protection (administrator, operator, viewer, add new users).

Printing Technology – Plug and print with HP45 ink Cartridge (Hewlett Packard TIJ2.5 Inkjet technology).
Dimensions (LxWxH) – 108x61x83mm/ 4.25×2.41×3.27 inches.
Weight – 580 g (excluding cartridge).
Power Supply – Adapter AC 100V-240V, 50/60Hz. Output 24DVC 2.5A.
Resolution – Max 600x600dpi.
Printing Speed – 70m/min @300x300dpi.
Density – 5 levels.
Control Model – Remote control web browser, mobile Application, or Tablet application (optional).
External Connection – AUX/IO Port for external sensor encoder and alarm beacon connection.
Length Template – Maximum length of template up to 1.5m.
Memory – Free memory up to 4G or storage template and Database.
Design Template – Free template design and running standalone.
Unlimited message line and characters.
Ability to import and export template.

Security – Password protection (Administrator, operator, viewer, add new user).

Ink Management – Automatic recognition of inks (aqueous or solvent) and application of appropriate printing parameters.

Nozzle switching, auto-jet mode and self-cleaning capabilities to extend cartridge lifetime.

Ink Solution and Accessories – Solvent based ink for multi surface printing Water based general purpose ink for printing on porous material.
Support various colours of ink: Black, RedGreen, Blue.
Smart Design – Strong and compact design.
Cartridge slot design for easier take in and take out with 1 printhead 0.5 inch.

Protection – Anti-shock mounting mechanism for printer protection circuit protection for quick cartridge change-over.

Operating Temperature between 5-50°C.

12 month limited warranty.

Printability – Alphanumeric, logos, date/time, .expiry date, Julian date, shift code, counter/lot box code, multiple types of variable 2D barcodes, image and database, realtime.
Print Online Data with Camera system, Barcode Scanner, Database.

Menu Language – English, Russian, Chinese, Italia, German, Portuguese, Vietnamese.
Printable character – Windows true fonts.

Additional Information

Producer RYNAN
Screen -
Resolution Max. 600×600 dpi
Max. printing speed Max. 70 m/min @ 300 x 300 dpi
Max. printing length Maximum length of template up to 1,5 m
Max. printing width No
Interfaces No
Features Pulse generator input
Power No
Dimensions 108 x 61 x 83 mm
