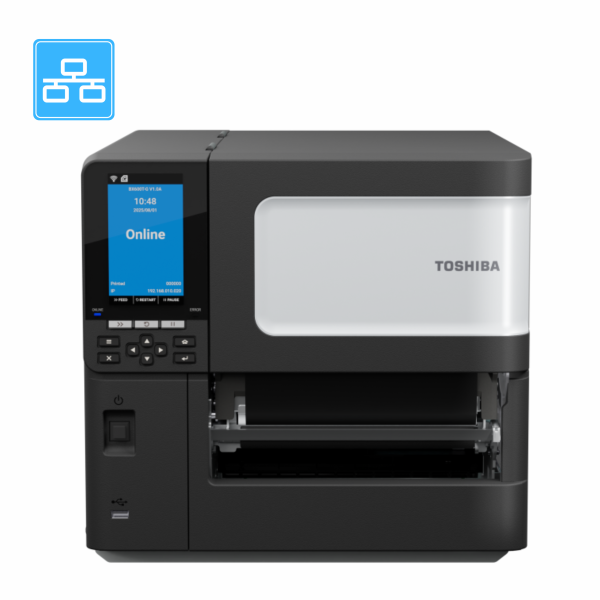

BX620T Series
The next-gen thermal transfer industrial printer BX620T combines field-proven hardware with a dual-core CPU running both, a real-time OS and a Linux OS creating the revolutionary A-BRID eco-system.
When your operations require wider labels and greater throughput, the 6-inch BX620T printer delivers. Engineered for high-volume environments, they combine robust performance with the advanced technologies of the new A-BRID platform, ensuring seamless integration, enhanced usability, and long-term reliability.
Ideal for businesses transitioning from legacy systems.
Dual-core CPU architecture driving the A-BRID operating system.
Real-time PDF printing with auto rotation & scaling.
Auto-emulation detects printer language automatically.
Cloud ready with e-BRIDGE CloudConnect.
Embedded apps for, e.g. standalone printing.
Automatic ribbon and label near end detection.
Renowned hardware reliability with long-life print heads.
Additional Information
| Producer | TOSHIBA |
|---|---|
| Part Number | BX620T-TS02-QM-S |
| Resolution | 305 dpi |
| Print width | 6 inch |
| Printing method | Direct Thermal / Thermal Transfer |
| Print head type | Flat Head |
| Max. printing speed | 305 mm/sec |
| Max. printing width | 162 mm |
| Max. printing length | 1498 mm |
| Label width | 50-165 mm |
| Label length | Batch: 6-1498 mm, Cut: 21,4-1498 mm, Peel-off: 21,4-1496 mm |
| Max. labels roll diameter | 200 mm |
| Interfaces | USB 2.0,USB 2.0 HS (USB host/HID support), LAN 10/100/1000 BaseT, RS232 (Optional), WLAN 802.11ac/a/b/g/n/ax (Optional), Bluetooth 5.2 (Optional), Expansion I/O (Optional) |
| Memory | 1 GB RAM, 8 GB ROM |
| Optional | Disc cutter, Rotary cutter, Peel-off module, Ribbon save module, External media guide, RS232, Wireless LAN, EX I/O, UHF RFID kit, HF RFID kit, Real time clock |
| Dimensions | 331 x 460 x 310 mm |
-
TOSHIBA BX600 Series Brochure
Download
